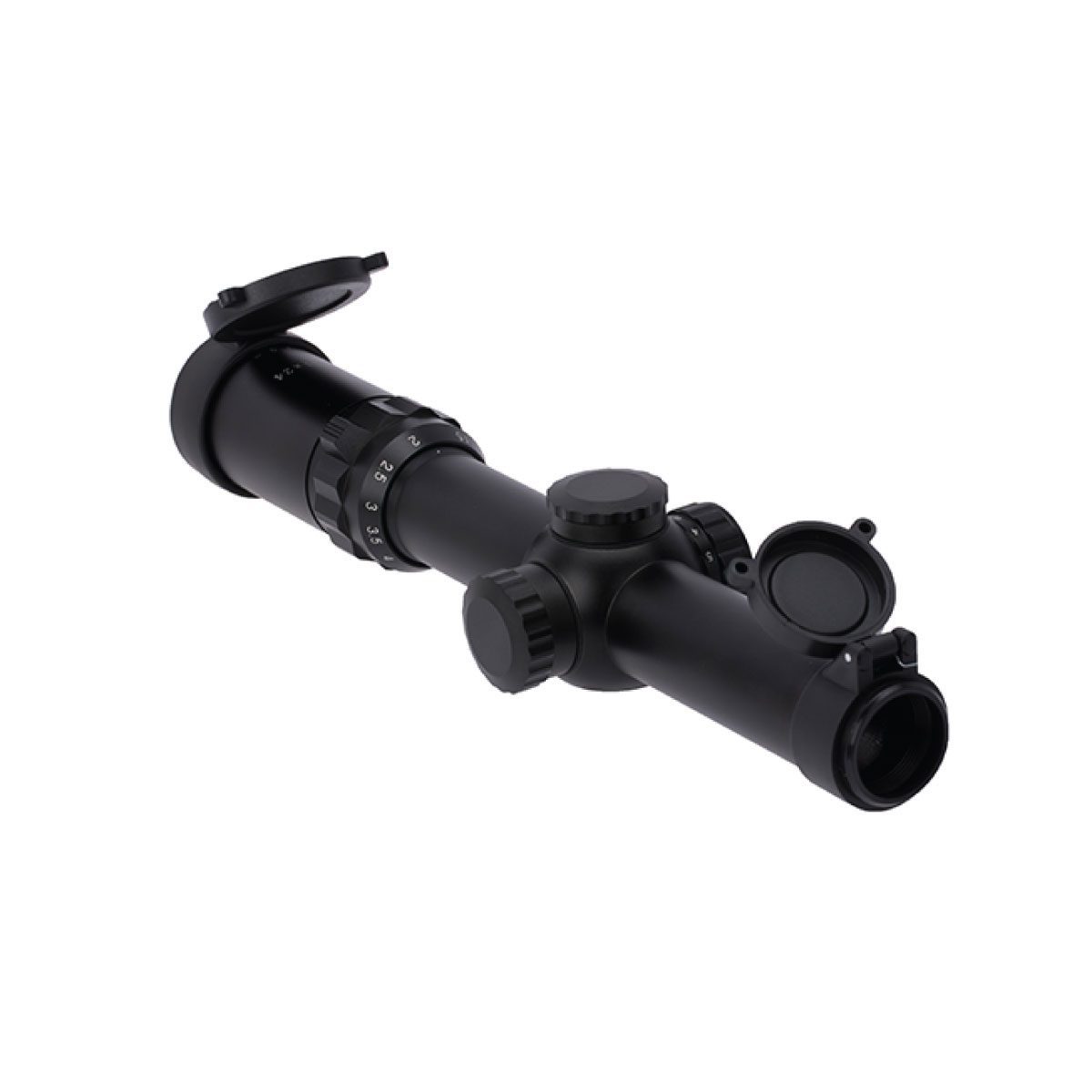

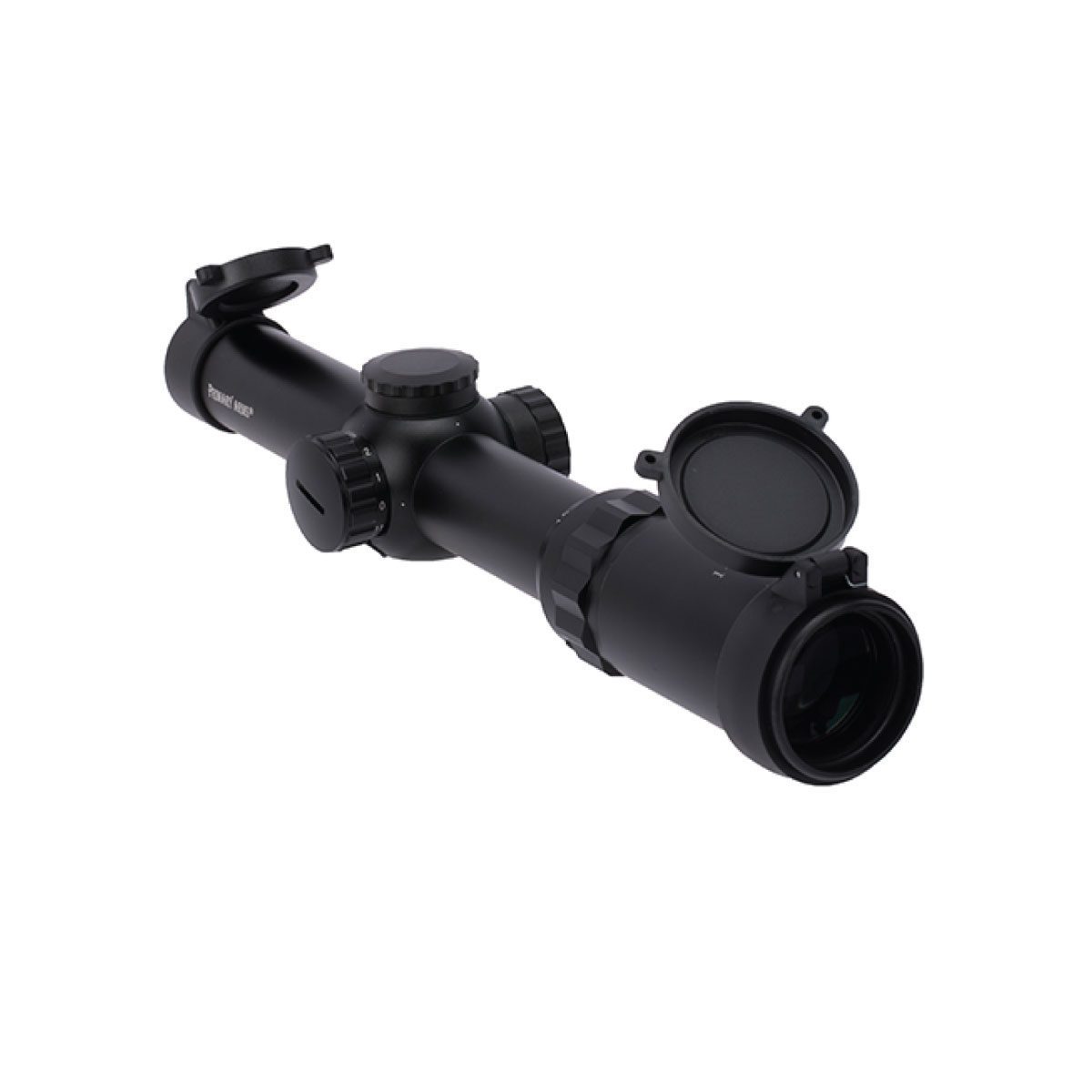

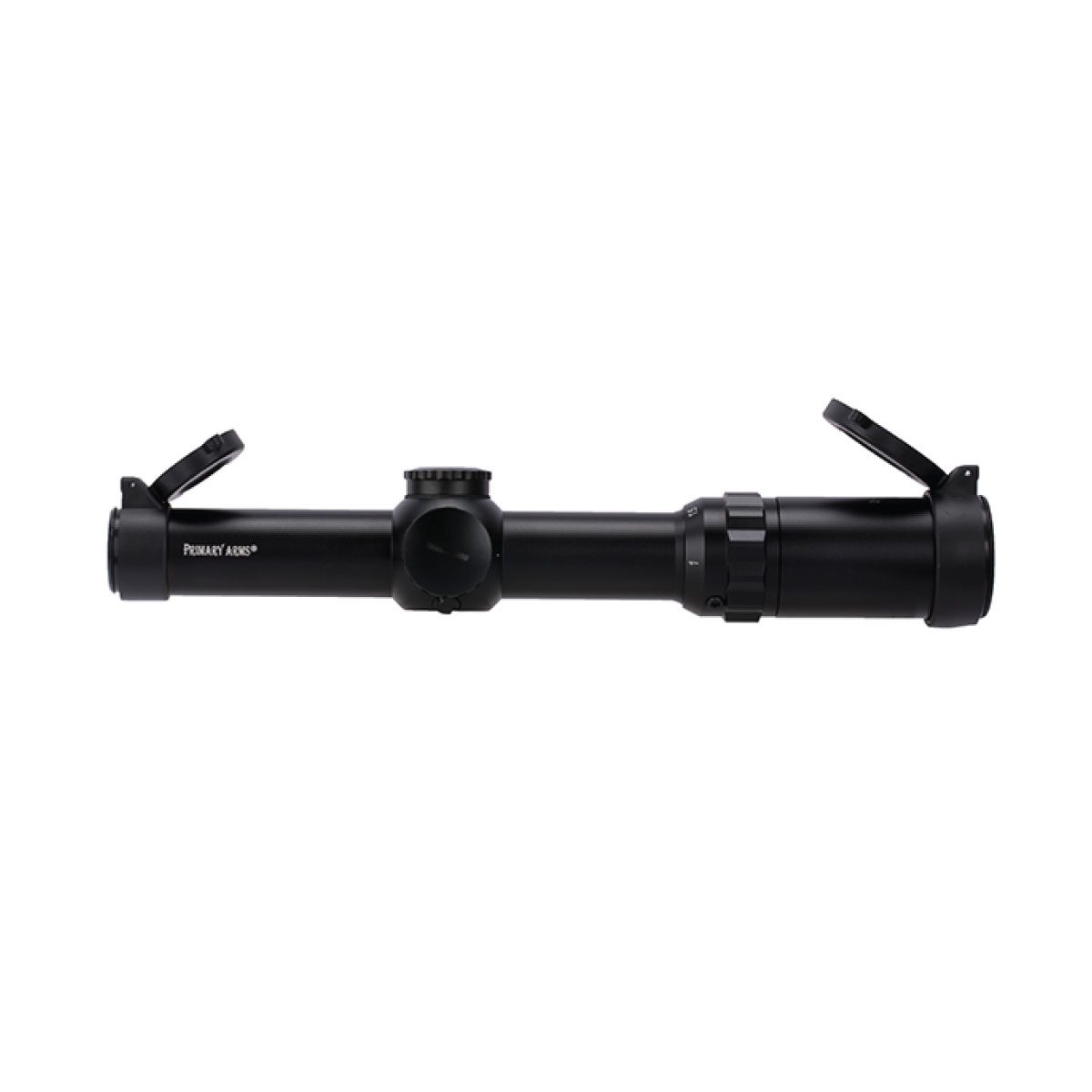

Classic Series™ 1-4×24 Second Focal Plane Scope with Duplex Reticle

SKU: PA14X Categories: , , , Tag:

MPN: 610001

This Classic Series 1-4×24 scope with center illuminated duplex dot reticle is great for hunting or plinking. With 12 brightness levels for the central dot, early in the morning or late in the day is easy and the multicoated lenses allow for optimal light transmission for effective use. If you are looking for an affordable yet reliable and effective optic, check out the CLx4 optic.

Buy on Manufacturer Website

$129.99

The Classic Series™ proves that entry-level optics don’t have to be poor quality optics. Unlike some other brands, we don’t use the word “value” as a euphemism for “junk”. Classic Series scopes are perfect for the budget conscious. We take the time to 100% inspect every product in our facility here in Houston to ensure you are receiving the best quality product as our other three tiers. These scopes are backed by the same excellent customer service and support as all other Primary Arms products.

The Primary Arms 1-4×24 illuminated scope features a duplex center dot reticle. Eye relief is a generous 3.5-4.9″ depending on magnification. The brightness knob to the left side of the tube illuminates the center dot through 12 brightness settings. This durable optic is waterproof, fully multicoated, and fog resistant, with a lifetime warranty. Turret caps cover finger adjustable ½ MOA per-click windage and elevation knobs. An adjustable ocular ensures the reticle is sharp for your eyes.

Brand

Primary Arms

Magnification

1-4x

Focal Plane

Second Focal Plane

Tube Diameter

30mm

Brand

Magnification

Focal Plane

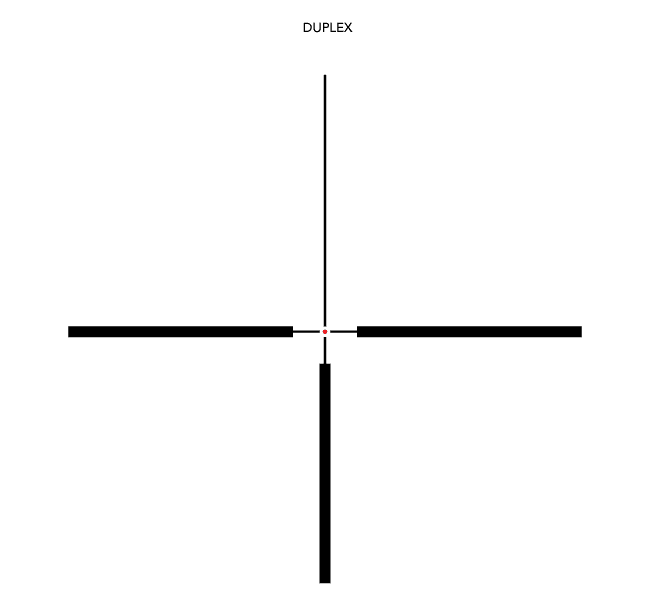

DUPLEX

The duplex crosshair is a traditional and simple reticle known and understood universally by people around the world. Thicker sections around the edges guide the eye to easily find the thin lines intersecting in a simple illuminated dot at the center.

SPECIFICATIONS:

  • Magnification: 1-4x
  • Second Focal Plane
  • Objective Lens Diameter: 24mm
  • Ocular Lens Diameter: 30mm
  • Eye Relief: 3.5″ – 3.8″
  • Exit Pupil: 24mm – 6mm
  • Click Value: 0.5 MOA
  • Length (w/o Lens Covers): 11.3″
  • Weight (w/ Battery, w/o Lens Covers): 16.7 oz.
  • Field of View:
    • 76 feet @ 100 yards at 1x
    • 24 feet @ 100 yards at 4x
  • Total Windage Adjustment: 45 MOA
  • Total Elevation Adjustment: 45 MOA
  • 6063 aluminum, anodized matte black

FEATURES:

  • Duplex Reticle
  • Illuminated Center Dot Red Reticle Illumination
  • Waterproof: Meet IP67 Standard
  • Fog Resistant
  • Flip caps (Included)
  • Lifetime warranty
